CORDLESS & FOLDABLE AIR CIRCULATOR
Your Breeze. Wherever You Need It.

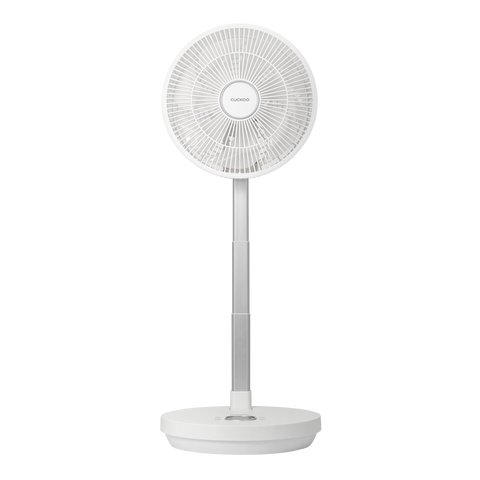

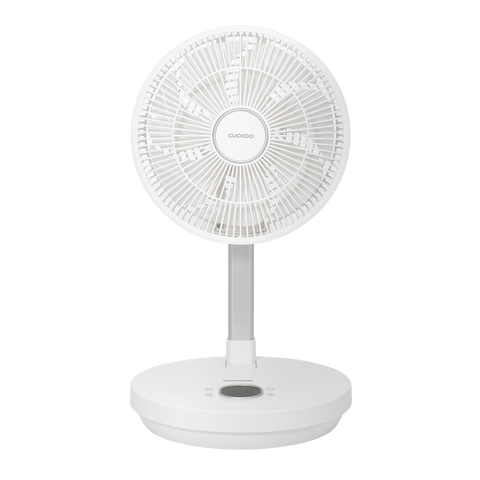

The CUCKOO Cordless Foldable Air Circulator (CF-ECL1010WH) is a rechargeable 10-inch fan with a quiet BLDC motor, seven-blade design and 12 speed settings. Use it at your desk, in the living room or at a sheltered campsite, then fold it away in the included carry bag. Enjoy up to 30 hours of cordless use at speed level 1 on a full charge.
Around 2 hours of cordless use at level 12. Actual runtime varies with settings, battery condition and use.
Cordless Comfort, at Home or Away
A built-in 7.4 V, 4,850 mAh lithium-ion battery lets you use the air circulator without keeping it plugged in. A full charge takes around 8 hours, with approximately 30 hours at level 1 or 2 hours at level 12.
Use the supplied adapter for charging and set the battery isolation switch on the back of the base to ON (I) before charging or operating the fan. For outdoor use, choose a dry, sheltered location and keep the fan and adapter away from rain, moisture and direct sunlight.

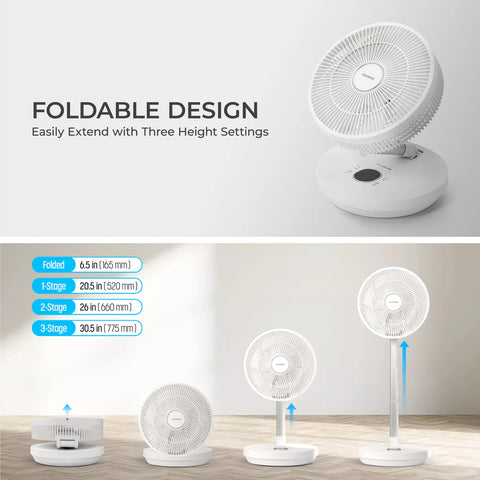

Fold It Down. Take It Along.

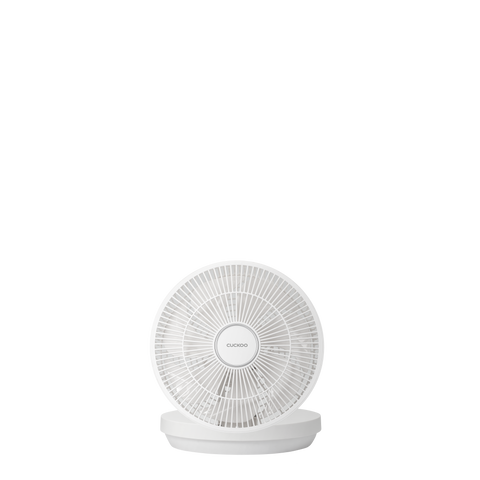

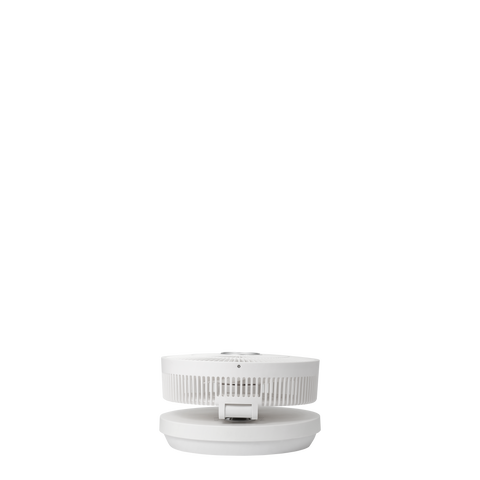

Lower the telescopic stand and fold the fan head towards the base for compact storage. The included carry bag makes it easy to pack for a trip or put away between seasons.
Adjust the stand for desk or floor placement, with a maximum height of 795 mm. Press the stand lock button to lower it. Switch off the fan before folding or adjusting it, and set the battery isolation switch to OFF (O) before placing it in the bag.
Quiet BLDC Motor for Everyday Comfort
Enjoy a gentle breeze while reading, working or relaxing. The BLDC motor provides adjustable airflow with noise levels as low as 20 dB. Actual noise varies with the speed setting and operating conditions.
Seven Blades for Smooth Air Circulation
The 10-inch, seven-blade design delivers smooth airflow for everyday comfort. Use it on its own for a breeze, or alongside an air conditioner or heater to help distribute cooled or warmed air around the room. Keep it clear of heat sources.
The air circulator moves air; it does not actively cool or heat it.

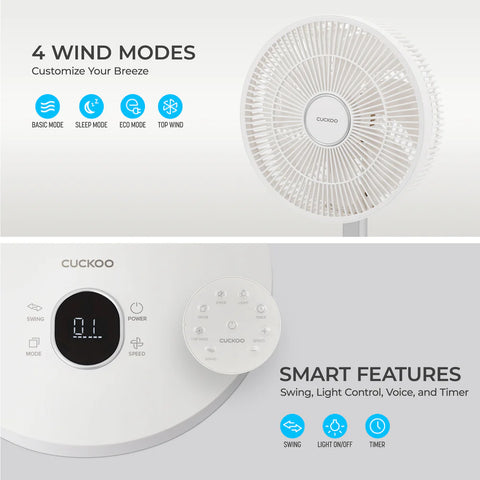

12 Fan Speeds. Four Airflow Modes.
Choose Normal, Sleep, Eco or Turbo to suit your routine. Normal mode offers 12 speed settings, while Turbo runs at the highest speed, level 12.
Sleep mode: The fan reduces its speed by one level every 30 minutes. Starting at levels 1-3, it settles at level 1. Starting at levels 4-12, it settles at level 3.
Eco mode: Fan speed changes automatically with the room temperature, using the settings shown below.
Eco Mode Temperature Guide
| Room Temperature | Fan Speed |
|---|---|
| 23°C or below | Level 2 |
| 23-25°C | Level 4 |
| 25-27°C | Level 6 |
| 27-29°C | Level 8 |
| 29-31°C | Level 9 |
| 31-32°C | Level 10 |
| 32°C or above | Level 12 |
Temperature bands follow the user manual. The sensed temperature may differ from other thermometers in the room.

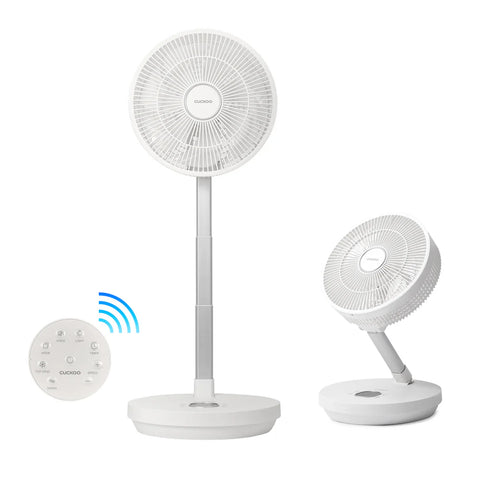

60° Oscillation & Magnetic Remote Control

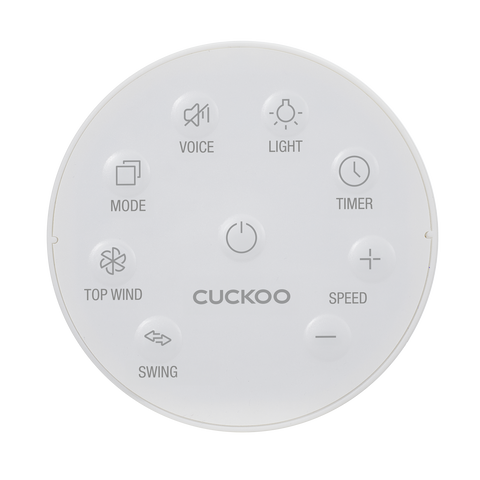

60° horizontal oscillation helps spread airflow from side to side. Use the remote from up to approximately 5 metres away, pointing it towards the receiver on the fan.

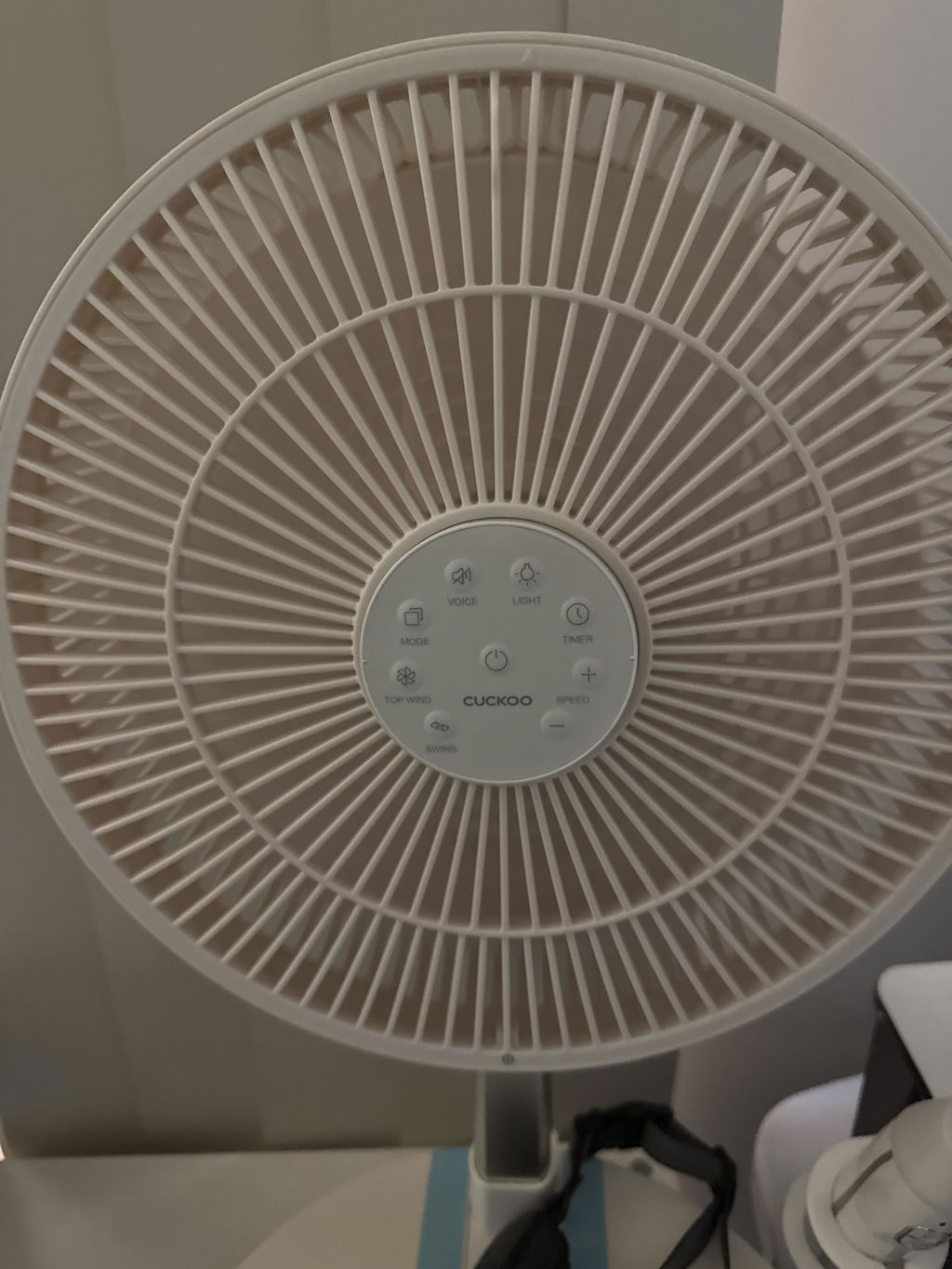

Adjust the speed, mode, swing, display lighting and button sounds. The remote attaches magnetically to the centre of the front grille, so it has a convenient place to stay between uses.
Start and stop timer: Schedule the fan to turn on while it is at rest, or turn off while it is running, in 1-hour steps up to 12 hours. Timer settings are available on the remote.
Comfort Through the Seasons
From your home office to the lounge, cordless placement lets you bring the breeze closer to where you sit. Adjust the height and speed to suit your space, then fold the fan away when you are finished.
Product Specifications
| Model | CF-ECL1010WH |
|---|---|
| Colour | White |
| Fan Design | 10-inch fan with 7 blades |
| Rated Voltage / Power | 12 V DC / 24 W |
| Power Adapter | Input: 100-240 V~, 1.0 A, 50/60 Hz Output: 12 V DC, 2 A |
| Built-in Battery | 7.4 V DC, 4,850 mAh lithium-ion |
| Charging Time | Around 8 hours |
| Cordless Runtime | Level 1: around 30 hours Level 12: around 2 hours Runtime varies with settings, battery condition and use. |
| Fan Speeds / Modes | 12 speeds / Normal, Sleep, Eco and Turbo |
| Horizontal Oscillation | 60° |
| Timer | 1-12 hours, in 1-hour steps; set using the remote |
| Remote Battery | CR2025 / 3 V |
| Dimensions | 296 mm (W) × 296 mm (D) × 795 mm (H) |
| Weight | 2.9 kg, including adapter |
| Included Accessories | Remote control, power adapter, carry bag and user manual |
Frequently Asked Questions
How long does the CUCKOO CF-ECL1010WH run on battery power?
On a full charge, the manual lists around 30 hours at speed level 1 and around 2 hours at level 12. Higher speeds use more battery power, and actual runtime varies with settings and battery condition.
Why is the fan not charging or switching on?
Check that the battery isolation switch on the back of the base is set to ON (I). For charging, connect the supplied adapter securely to the fan and a working power outlet. Contact support if the problem continues.
How do I clean the fan?
Switch off the fan, unplug the adapter and set the battery isolation switch to OFF (O). Follow the manual to remove the front grille and blades. These parts can be washed if heavily soiled, then fully dried before reassembly. Keep the motor, base and rear grille dry; the rear grille must not be removed.
Can I take it camping?
Yes. Its rechargeable battery, folding design and included carry bag make it convenient for camping. Use it in a dry, sheltered area, protect it from rain and moisture, and charge with the supplied adapter.
Does the remote have voice guidance?
The remote controls the button beep sound; it is not a spoken voice guide. It also controls the display lighting, timer, modes, fan speed and horizontal oscillation.
Care & Operating Information
- Use the supplied power adapter. Set the battery isolation switch to ON (I) for charging and operation, and OFF (O) before cleaning, folding for storage or putting the fan in its carry bag.
- Wipe the stand and motor cover with a soft, dry cloth. Keep water out of the main body and avoid thinners, benzene and alcohol.
- Remove and refit the front grille and blades only as instructed in the manual. Fully dry washed parts and securely tighten the grille screw before use. Do not remove the rear grille.
- Keep the fan on a stable surface. Keep fingers and objects away from the grille, and do not force rotating parts by hand.
- For prolonged storage, follow the manual's battery care instructions and periodically recharge using the supplied adapter.
The remote contains a CR2025 3 V coin battery. Swallowing a coin battery can cause severe internal burns in as little as 2 hours and can be fatal. Keep new and used batteries away from children. Seek immediate medical attention if a battery may have been swallowed or placed inside any part of the body. Stop using the remote if its battery compartment does not close securely.
For product support in Australia, contact CUCKOO Oceania on 1300 98 13 13 or info@cuckooaustralia.com.au.
