CORDLESS VACUUM & MOP
A smarter way to clean your home.
Meet the CUCKOO Power-Clon Cordless Vacuum & Mop (CVC-L1610NW). A 515 W BLDC motor, Smart dust sensing and a dual-roller floor head bring adjustable cordless cleaning to everyday floors.
Switch to the included motorised mop head for pad-based floor cleaning, or use the handheld body and small tools for furniture and narrow gaps.
MOTORISED MOP HEAD INCLUDED
From vacuuming to motorised mopping.
Two rotating pads. Simple water control.
Change from the dual-roller floor head to the motorised mop head when you want to clean with mop pads.
The built-in water tank has a Lock / Unlock lever: lock it to stop water flow for dry-pad cleaning, or unlock it to supply water for damp mopping. Fill through the inlet and close the cap securely.
Empty the tank and return the lever to Lock before storing. The water tank is built into the mop head and is not detachable.
Switch off the vacuum and securely fit the motorised mop head.
Centre each pad on its attachment plate, with the striped side facing the plate.
Remove, wash and dry the pads after use. Empty the tank before storing.
The mop attachment is for pad-based cleaning. Do not vacuum liquid spills or rinse the powered mop head. Follow your flooring manufacturer’s care instructions.
POWER FOR EVERYDAY FLOORS
Strong suction. Control when you need it.
515 W BLDC performance.
The BLDC motor powers your cordless clean. Choose ECO, POWER or TURBO for manual suction control, or let Smart mode adjust suction according to the dust detected.
Maximum suction is stated as 159 AW, measured with the handheld main unit without the brush, extension tube or accessories. Actual cleaning performance varies with the setup and conditions.
THE FLOOR HEAD THAT DOES MORE
Reach edges. See what you are cleaning.
Dual rollers, flexible steering and LED light.
The dual-roller floor head brings the main roller and side brush together for floor cleaning near walls and corners. The dual-bristle design helps lift dust from carpet fibres and reduce hair tangles.
The flexible joint makes direction changes easier, while the green LED illuminates the area ahead of the head.
Movement and cleaning performance can vary on textured mats, rugs and carpets. Regularly remove trapped hair and debris.
SUCTION THAT RESPONDS
Smart sensing. Less manual adjustment.
Responds to the dust you pick up.
In Smart mode, the dust sensor detects the amount of dust being picked up and automatically adjusts suction. The vacuum starts in Smart mode when powered on.
Prefer to choose the setting yourself? Use the mode button to select ECO, POWER or TURBO.
Keep the dust sensor clean with a dry cloth. A dusty sensor can cause Smart mode to stay at high suction.
CLEAR INFORMATION, WITHIN REACH
Know your mode. Check your battery.
A display you can check at a glance.
The status display shows the selected mode and battery charge. It also alerts you to low battery, a blocked nozzle or a blocked brush.
The separate power and mode buttons keep everyday adjustments straightforward. Check the user manual if a warning appears.
CORDLESS CLEANING TIME
A removable battery. A practical recharge.
2,500 mAh lithium-ion battery.
The removable 25.9 V, 2,500 mAh, 7-cell battery powers cordless cleaning. Charge the fitted vacuum on the stand, or charge the detached battery with the supplied adapter.
| Maximum stated runtime | Approx. 45 minutes in manual low-noise mode |
|---|---|
| Manual power-mode runtime | Approx. 11 minutes |
| Full charging time | Approx. 4–5 hours |
The manual’s runtime figures apply when using the crevice tool or mattress brush. Runtime varies with mode, attachment, conditions and battery age. The vacuum does not operate while charging.
FIND YOUR COMFORTABLE REACH
Six positions. One adjustable tube.
Adjust the length to suit the task.
The six-position extension tube lets you set a comfortable working length. Press the adjustment control and slide the tube to your preferred position.
Detach the tube to use the main unit with a small attachment for closer cleaning around furniture and narrow spaces.
EASIER DUSTBIN EMPTYING
Clear the dust. Scrape the filter.
A built-in filter-scraping handle.
Hold the dustbin close to a rubbish bin, open its cover and pull up the handle on top of the main unit. The scraper helps loosen hair and dust from the metal mesh filter.
For heavier build-up, the manual recommends repeating the action four or five times. Empty before dust reaches the MAX mark.
Switch off and detach the battery before cleaning. The scraper supports regular maintenance; it does not replace filter care.
FIVE-STAGE FILTRATION
Separate debris. Filter the airflow.
Five stages, along one airflow path.
The CVC-L1610NW combines cyclonic separation with metal mesh, H13 HEPA and exhaust filtration.
- Primary CycloneStarts separating debris from the incoming airflow.
- Metal Mesh FilterHelps separate larger particles and debris.
- Multi-CycloneProvides a further stage of dust separation.
- H13 HEPA FilterHelps capture fine dust from the airflow.
- Exhaust FilterThe final filtration stage before air is released.
For maintenance, wash only the detached parts specified in the manual. Keep the attached metal mesh filter and main unit dry. See the care guide below.
THE RIGHT ATTACHMENT
Floors, furniture and the gaps between.
Choose your tool. Get closer.
Switch from floor cleaning to the handheld body for smaller spaces.
- Dual-Roller Floor HeadEveryday floor cleaning.
- 2-in-1 BrushDusting and smaller surface clean-ups.
- Crevice ToolNarrow gaps and window tracks.
- Mattress BrushMattresses and suitable upholstery.
- Motorised Mop HeadTwin-pad cleaning with simple water control.
A PLACE FOR EVERYTHING
Store and charge in one organised space.

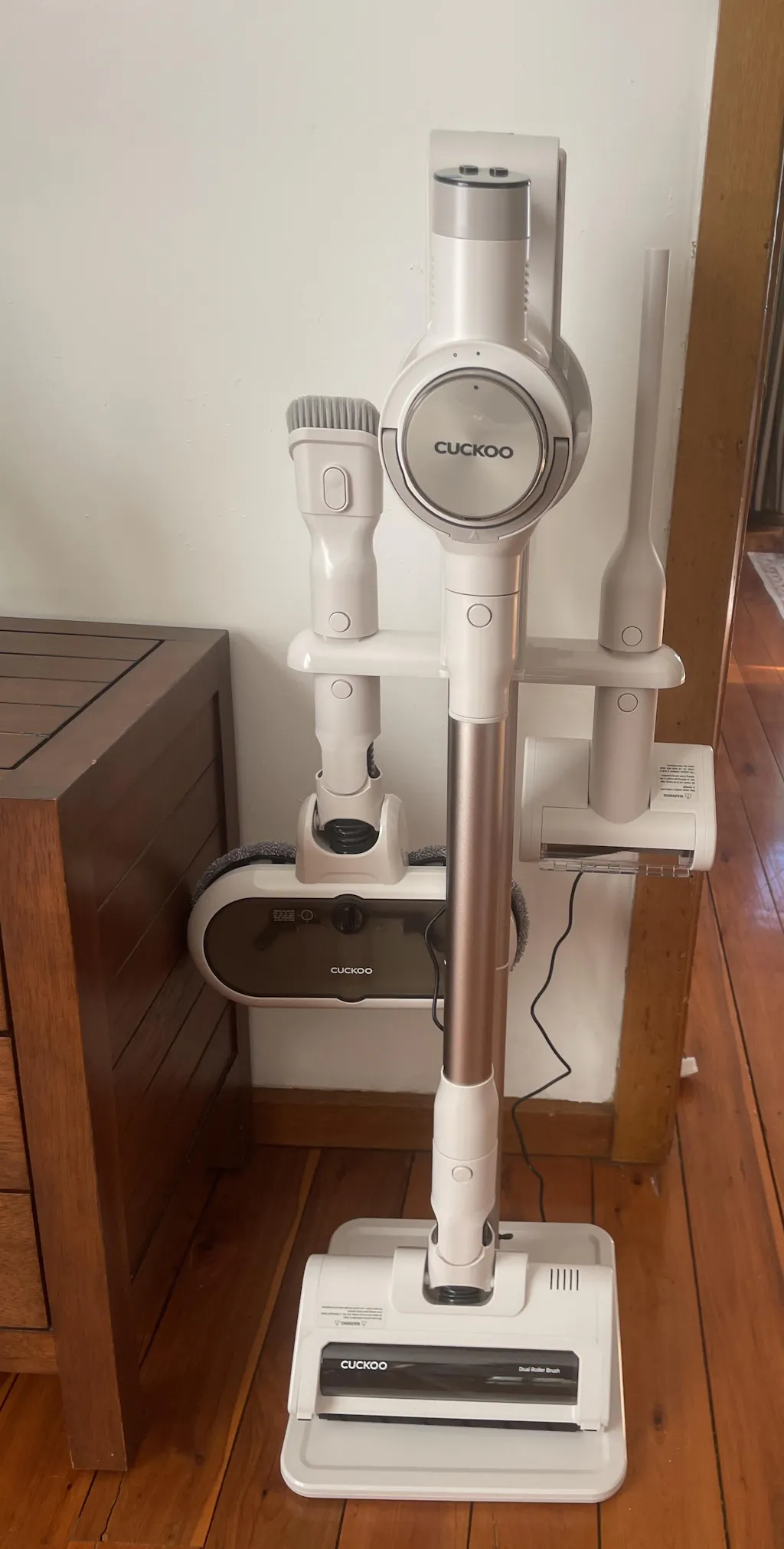

Standing dock with accessory storage.
Keep the vacuum upright on its standing charging dock, with small attachments stored on the accessory holders.
Seat the product correctly on the stand to charge. You can also remove the battery and charge it separately with the supplied adapter.
Place the stand on a stable, level surface and position it securely as directed in the user manual.
WHAT’S INCLUDED
Your vacuum and mop kit.
Included: Main Unit, Motorised Mop Head, Adjustable Extension Tube, Charging Stand, Battery, 2-in-1 Brush, Dual-Roller Floor Head, Crevice Tool, Mattress Brush and Charging Adapter.
Product and component designs may change without notice as part of quality improvements.
CARE THAT KEEPS IT READY
Clean the right parts the right way.
| Before maintenance | Switch off the vacuum and remove the battery. |
|---|---|
| Dustbin and cyclone filter | Detach, remove loose dust, rinse under running water and dry completely in a shaded, well-ventilated area. |
| HEPA filter | Detach as directed, remove dust, rinse under running water and dry completely before refitting. |
| Metal mesh filter | Use the scraper and brush or dry cloth. It stays attached to the main unit: do not rinse it or immerse the main unit. |
| Dust sensor | Wipe periodically with a dry cloth. |
| Mop pads and tank | Remove and wash the pads, then dry them. Empty the tank and set the lever to Lock for storage. |
| Powered mop head and floor heads | Detach before cleaning. Remove debris and wipe as directed. Do not rinse the powered mop head. |
BEFORE YOU CHOOSE
Your vacuum and mop questions, answered.
Can I vacuum and mop with the CVC-L1610NW?
Yes. The Australian kit includes a dual-roller vacuum floor head and a separate motorised mop head. Change heads to suit the task. Do not use the vacuum to pick up liquid spills.
Does the mop have adjustable water levels?
The mop has Lock / Unlock water control. Lock stops the water supply for dry-pad cleaning; Unlock releases water for damp mopping. The manual does not describe multiple water-flow settings.
How long does the battery last?
The manual lists approximately 45 minutes in manual low-noise mode and 11 minutes in manual power mode when using the crevice tool or mattress brush. These figures are not a guaranteed runtime with every attachment.
How does Smart mode work?
Smart mode adjusts suction automatically according to the amount of dust detected. ECO, POWER and TURBO provide manual settings. Clean the dust sensor periodically with a dry cloth.
Does it have a HEPA filter?
Yes. The CVC-L1610NW has an H13 HEPA filter within its five-stage filtration system. Clean the detached filter as directed and let it dry completely before refitting.
Can I wash every filter?
No. The manual permits washing the detached dustbin, cyclone filter and HEPA filter. The metal mesh filter is attached to the main unit and must not be rinsed. Keep the main unit dry and dry all washed parts completely before refitting.
Can I charge the battery separately?
Yes. You can charge the vacuum on the stand or remove the battery and connect the supplied charging adapter directly to it. A full charge takes approximately 4–5 hours.
Can I use it while charging?
No. The vacuum does not operate while it is charging.
Which attachments are included?
The kit includes the dual-roller floor head, motorised mop head, 2-in-1 brush, crevice tool, mattress brush and adjustable extension tube, plus the battery, charging stand and adapter.
What should I do if suction weakens?
Switch off and remove the battery. Empty the dustbin, check the inlet and attachments for blockages and clean the filters as directed. Make sure rinsed parts are fully dry before refitting. If the problem persists, contact CUCKOO customer service.
THE DETAILS
CVC-L1610NW specifications.
| Model / SKU | CVC-L1610NW |
|---|---|
| Colour | Noble White |
| Product dimensions | 259 (W) × 225 (D) × 1,231 (H) mm |
| Product weight | 2.9 kg |
| Rated voltage | 25.9 V DC |
| Rated power | 515 W |
| Motor | BLDC |
| Battery | 25.9 V lithium-ion, 2,500 mAh, 7 cells |
| Manual suction settings | ECO, POWER and TURBO |
| Automatic suction setting | Smart mode — adjusts suction based on dust detected |
| Stated runtime | Approx. 45 minutes in manual low-noise mode / 11 minutes in manual power mode, using the crevice tool or mattress brush |
| Charging time | Approx. 4–5 hours |
| Adapter input | 100–240 V AC, 50/60 Hz, 0.5 A |
| Adapter output | 30 V DC, 0.5 A |
| Filters listed in the manual | Metal mesh filter, HEPA filter and exhaust filter |
| Extension tube | 6 adjustable positions |
| Mop attachment | Motorised twin-pad head with Lock / Unlock water control |
| RCM registration | N5586 |
Runtime and charging time are approximate and vary with operating conditions. Weight and dimensions are the product figures listed in the manual; individual attachments change the overall configuration.
